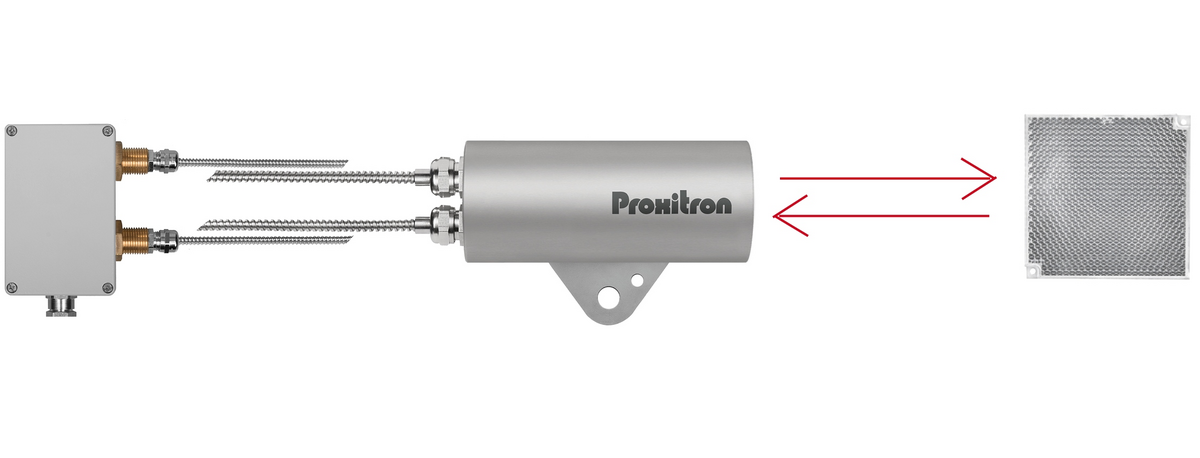

Retro-Reflective light barriers up to +290 °C

Proxitron Retro-Reflective light barriers for detecting cold and hot material.


Product selection

In addition to our Retro-Reflective light bariers standard version, discover the Proxitron Universal Light Barrier of the LX series.

  • 5040ALRD 600.38 GV Retro-reflective Sensor , -25°C up to 290°C
    Range: 35m,
    10-55V DC, Housing Material: Aluminium,Length: 125mm , Plug , with Test function , Suitable for ambient temperatures up to +70 °C. For applications with ambient temperatures up to +290 °C, you need 2 fibre optic cables and optics.
    HT
    Data sheet »

  • 5063ALXUD 600.3A GV universal Light Barrier , Sender/Empfänger , -25°C up to 290°C
    Range: 250m,
    12 -55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 125mm , Plug , universal use as a Thru-Beam Sensor, Retro-Reflective Sensor or Diffuse Sensor. Suitable for ambient temperatures up to +70 °C. For applications with ambient temperatures up to +290 °C, you need 2 fibre optic cables and optics. (available separately)
    HT
    Data sheet »

Please note that two fibre optic cables are required for the Retro-Reflective light barrier.




Retro-Reflective sensors for a lower ambient temperature



Are you looking for a reliable Retro-Reflective light barrier for use in your application?

Write to us by email at sales@proxitron.de, use our contact form or call us on 04121 2621-0.
Our team will be pleased to advise and provide you with all the information you need!
