Proxitron LLX series laser light barriers offer a wide range of functions and an extremely long range, which enables the detection of hot and cold objects.
When high precision and reproducibility are required, proxitron laser light barriers are the ultimate solution for detecting small objects or contours.
The Sensors can be easily adapted to a wide range of application conditions using software or teach-in. The adjustable switch-on and switch-off delay also offers a wide range of options. The optical adjustment tool simplifies installation if a large distance between the laser light barrier is required.
The robust design guarantees safe operation even in the case of vibration, and the temperature-resistant glass optics withstand radiant heat. Designs with a cooling jacket are available for higher ambient temperatures, and an alarm function signal is emitted in the event of soiling and overheating.
Your advantages
- LASER Class 2 can be used without additional protective action
- Individual settings for three switching outputs
- Alarm for excessive temperature or pollution
- Tech and test function
- extremely fast (0,5 ms/1000 Hz)
- robust and maintenance-free
- wide range of accessories
Application areas
- detection of hot and cold objects
- material tracking in drying ovens
- Detect material edges with high accuracy
- Detection of small objects
- jam detection
- prevention of obstruction material

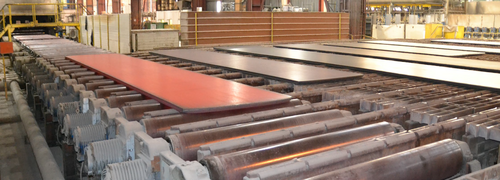

- material tracking on conveyors in hot areas
- feeding control in high temperature processes
- vehicle height monitoring in outdoor conditions

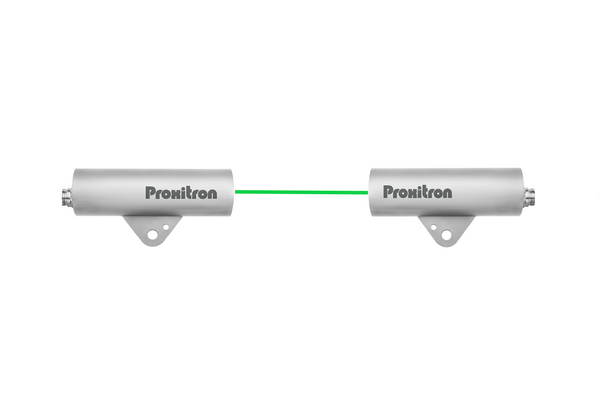

5067BLLAA 600.3 S4 Laser-Einweg-Lichtschranke , Transmitter , -25°C up to 50°C
Range: 2500m,
12 - 55V DC, Housing Material: Edelstahl,Length: 173mm , Ø57mm , Plug ,
Data sheet »5068BLLXSA 600.3A GV S8 Laser Einweg-Lichtschranke , Receiver , -25°C up to 70°C
Range: 2500m,
12 - 55V DC, Housing Material: Edelstahl,Length: 171mm , Ø57mm , Plug ,

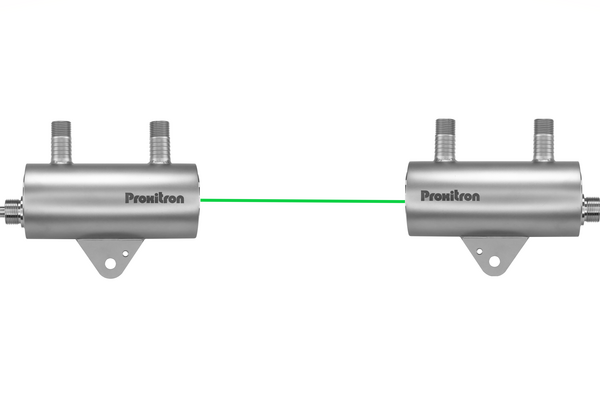

Data sheet »5067ALLAB 600.3 S4 Laser Einweg-Lichtschranke , Transmitter , -25°C up to 200°C
Range: 2500m,
12 - 55V DC, Housing Material: Edelstahl,Length: 173mm , Ø76mm , Plug , with Test function ,
Data sheet »5068ALLXSB 600.3A GV S8 Laser Einweg-Lichtschranke , Receiver , -25°C up to 200°C
Range: 2500mm,
12 - 55V DC, Housing Material: Edelstahl,Length: 196mm , Ø76mm , Plug ,

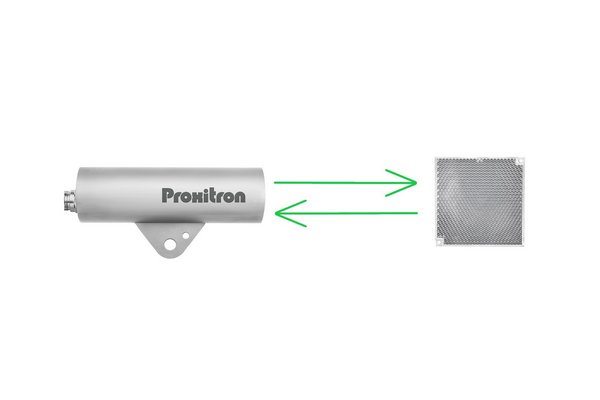

Data sheet »5069BLLXRB 600.3A GV S8 Retro-reflective Sensor , , -25°C up to 200°C
Range: 200m,
12 - 55V DC, Housing Material: Edelstahl,Length: 196mm , Ø76mm , Plug ,
Data sheet »5069ALLXRA 600.3A GV S8 Retro-reflective Sensor , , -25°C up to 50°C
Range: 200 m*m,
12 - 55V DC, Housing Material: Edelstahl,Length: 196mm , Ø57mm , Plug ,
Data sheet »

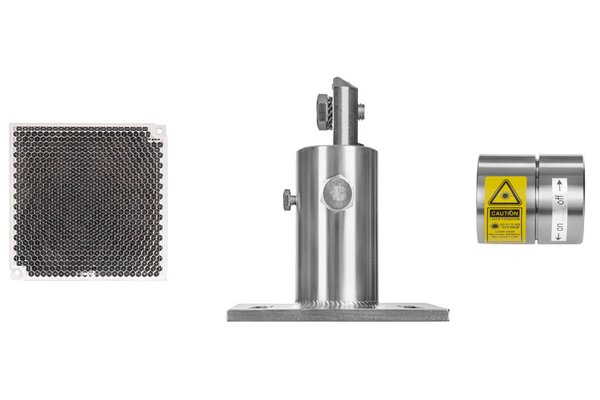

Mounting brackets
Stainless steel mounting brackets for optical sensors:
- HM2, height adjustable, movable, rotatable, tiltable, art.-no.: 9816B
- HM4 rotatable, tiltabler, art.-no.: 9816D
- HM6, Angle for reflector, art.-no.: 9816F
Tubes
Tube for optical laser sensors with air blow attachment:
- Tube OL 19,for optical sensors with housing Ø 57 mm, art.-no.: 9828A
- Tube OL 21, for optical sensors with housing Ø 76 mm, art.-no.: 9828C
- Tube OL 36, for optical sensors with air blow attachment, art.-no.: 9828S
Reflector for reflex light barriers
Reflectors for LASER retro-reflective sensors:
- ORL 01, 51 x 61 mm, 7.7 mm thick, item no.: 9818O
- ORL 02, 38 x 60 mm, 6.1 mm thick, item no.: 9818P
- OR 05, 51 x 95 mm, 9 mm thick, item no.: 9818I
