Strong, sturdy and durable. Compact devices up to 75 °C resp. 200 °C ambient temperature (Devices with optic and fiber optic cable even up to 290 °C).

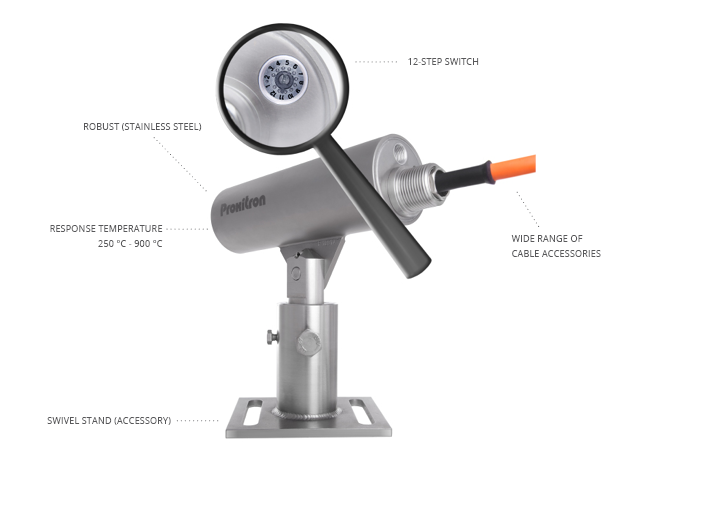

The classic infrared temperature switch (HMD) of Proxitron are a success story. About a switch with 11 steps, the response temperature - varied between +250 ° C and +900 ° C or between +100 °C and +600 °C– can be adapted to the conditions of application.
What Proxitron has given the new HMD 4.0 series, has been found in these sensors in thousands of times as a great success – often for decades. It is the robust construction in stainless steel housing, a wide range of accessories incl. the protection options for the cable and of course, the longevity and the maintenance-free of these special sensors.
Specific characteristics
Extremely robust
Shock and vibration resistant
Wear and maintenance free
Very quick response times
Adjustable response temperature
For ambient temperatures up to +600 °C
Great selection of models and connection versions
Diverse electrical outputs
Stainless steel housing
Complete range of accessories
6209AOKA 1016.38 G S4 Infrared Sensor (HMD) , -10°C up to 70°C
Field of view: 1°,
Response temperature 100-600°C
10-55 VV DC,PNP Schließer,
Housing Material: Edelstahl,Length: 170mm , Plug
Data sheet »6202EOKA 0529.38 G S4 Infrared Sensor (HMD) , -10°C up to 75°C
Field of view: 0,5°,
Response temperature 250-900°C
10-55V DC,PNP Schließer/Öffner,
Housing Material: Edelstahl,Length: 200mm , Plug
Data sheet »6203EOKA 1029.38 G S4 Infrared Sensor (HMD) , -10°C up to 75°C
Field of view: 1°,
Response temperature 250-900°C
10-55V DC,PNP Schließer / Öffner,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function
Data sheet »6204DOKA 2029.38 G S4 Infrared Sensor (HMD) , -10°C up to 75°C
Field of view: 2°,
Response temperature 250-900°C
10-55V DC,PNP Schließer / Öffner,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function
Data sheet »6206AOKA 7029.38 G S4 Infrared Sensor (HMD) , -10°C up to 75°C
Field of view: 7°,
Response temperature 250-900°C
10-55 VV DC,PNP Schließer / Öffner,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function
Data sheet »6208AOKA 0629.38 G S4 Infrared Sensor (HMD) , -10°C up to 75°C
Field of view: 0,5x15°,
Response temperature 250-900°C
10-55V DC,PNP Schließer,
Housing Material: Edelstahl,Length: 200mm , Plug
Data sheet »6205BOKA 1629.38 G S4 Infrared Sensor (HMD) , -10°C up to 75°C
Field of view: 1x50°,
Response temperature 250-900°C
10-55V DC,PNP Schließer / Öffner,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function
Data sheet »6209DOKB 1016.38 G S4 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 1°,
Response temperature 100-600°C
10-55V DC,PNP Schließer, Cooling Jacket,
Housing Material: Edelstahl,Length: 170mm , Plug
Data sheet »6202FOKB 0529.38 G S4 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 0,5°,
Response temperature 250-900°C
10-55V DC,PNP Schließer / Öffner, Cooling Jacket,
Housing Material: Edelstahl,Length: 200mm , Plug , with Test function
Data sheet »6203COKB 1029.38 G S4 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 1°,
Response temperature 250-900°C
10-55V DC,PNP Schließer / Öffner, Cooling Jacket,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function
Data sheet »6206BOKB 7029.38 G S4 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 7°,
Response temperature 250-900°C
10-55 VV DC,PNP Schließer, Cooling Jacket,
Housing Material: Edelstahl,Length: 170mm , Plug
Data sheet »6208BOKB 0629.38 G S4 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 0,5x15°,
Response temperature 250-900°C
10-55 VV DC,PNP Schließer, Cooling Jacket,
Housing Material: Edelstahl,Length: 200mm , Plug
Data sheet »6205COKB 1629.38 G S4 Infrared Sensor (HMD) , -10°C up to 75°C (with cooling 200°C)
Field of view: 1x50°,
Response temperature 250-900°C
10-55V DC,PNP Schließer / Öffner, Cooling Jacket,
Housing Material: Edelstahl,Length: 170mm , Plug , with Test function
Data sheet »
Connection cables
- 2 m connection cable for OKA/B, ST043/4-2H, art.-no. 9844R
- 2 m connection cable for OXA/B, ST043/5-2H, art.-no. 9850R
- 5 m connection cable for OXA/B, ST043/5-5H, art.-no. 9844V
Adapter for cable protection
Installation of cable protection screwing, for optical sensors with 3/4“ thread:
- HG 2, art.-no.: 9855B
Tube
Tube for optical laser sensors with air blow attachment:
- Tube OL 19,for optical sensors with housing Ø 57 mm, art.-no.: 9828A
- Tube OL 21, for optical sensors with housing Ø 76 mm, art.-no.: 9828C
- Tube OL 36, for optical sensors with air blow attachment, art.-no.: 9828S
Laser Pilot light
Laser pilot light attachment for optical sensors with M40 housing:
- DAK 308, laser light: green, art. no.: 6913G
- OL 26, suitable for OAA/D, OKA, LAA, LSA, LRA, LTA, art. no.: 9828H
- OL 27, suitable for OAB, OKB, LAB, LSB, LRB, LTB, art. no.: 9828I
- OL 28, adapter for DAK 308 to OAC, OCAF, OAF, art. no.: 9828K
