Infrared Temperature Switch (HMD) Mini

Small, high-performing and at optimal costs.



Proxitron infrared temperature switchs have always been extremely robust, wear resistant and maintenance-free and specially constructed for the application in rough conditions. This situation has not been altered regarding the new Infrared Temperature Switch (HMD) mini. The robust und small stainless steel housing make him to an all-rounder for many applications.

The Infrared Temperature Switch (HMD) mini convinces with its smart software, two parameterizable outputs and a lot more functions. One of the function is for example the comfortable Teach-In function. This function recognises the temperature of an object and adjusts the optimal switching point automatically.


Our infrared temperature switch (HMD) Mini at a glance

Product features

  • Detection of hot objects
  • Material tracking on roller conveyors
  • Feeding and ejection control in hot forging
  • Small and robust stainless steel housing M40
  • Response temperature from 250 °C up to 900 °C
  • Object temperature from 250 °C up to 1.300 °C
  • Comfortable Teach-In function
  • Robust silica lens
  • Easy parameterization via software
  • Two freely parameterizable outputs
  • Maintenance free, low investment costs
  • Bus compatible (MODBUS RTU)
  • Ambient temperatures -10 °C up to 70 °C
  • Wide range of accessories for mounting, cooling, alignment and protection against dirt and debris

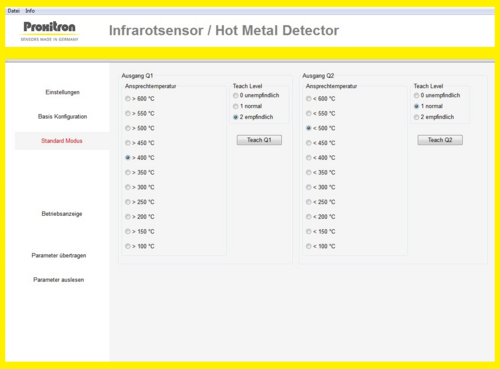

The software

The Infrared Temperature Switch (HMD) Mini is also in no way inferior to the “big ones” when it comes to user-friendliness and parameterisation. Equipped with a convenient and intuitive software interface, it fulfils the requirements of Industry 4.0.

The Infrared Temperature Switch (HMD) Mini has two switching outputs - each output is programmable in the standard function with different response temperatures. With the equiped alarm function the self monitoring has been realised. If the function of the sensor is at risk due to an extremely dirty optic, the sensor puts itself automatically in the alarm mode.

Of course a variety of parameters are shown and visualised during operation. The system uses a MODBUS for the communication and therefore it can be quickly integrated in existing BUS systems

Download


Product selection

  • 7700AOXS 102T.2A G S8 Infrared Sensor (HMD) , -10°C up to 70°C (with cooling 200°C)
    Field of view: 1°,
    Response temperature 260-900°C
    10-30V DC,PNP programmierbar,
    Housing Material: Edelstahl,Length: 113mm , Plug , with Test function

    Data sheet »

  • 7701AOXS 402T.2A G S8 Infrared Sensor (HMD) , -10°C up to 70°C
    Field of view: 4°,
    Response temperature 250-900°C
    10-30V DC,PNP Schließer/Öffner,
    Housing Material: Edelstahl,Length: 108mm , Plug , with Test function

    Data sheet »



Extensive range of accessories >>

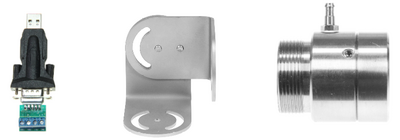

Our extensive range of accessories allows adaptation to various operating conditions.

Accessories available for our Infrared Temperature Switch (HMD) Mini:

Connection cables

Connection Cable S8 with female straight plug:

  • Female connector 2 m, ST S8-2, art.-no. 9850O
  • Female connector 5 m, ST S8-5, art.-no. 9850N



Datesheet >>



Cooling jacket

Cooling jacket with air connection for protection against overheating and contamination for optical sensors in M40 housing

  • DAK 302, art.-no.: 6913B


Datasheet >>



Air purge unit

Air purge unit with air connection for lens cleaning usable for optical sensors in M40 housing.

  • DAK 303, art.-no.: 6913C


Datasheet >>

Laser Pilot light

Laser Pilot light unit for optical sensors with M40 housing (OKS/OXS):

  • DAK 308, laser light color: green, art.-no.: 6913G



Datasheet >>



Do you have any questions about our HMD mini?

Then please contact us using our contact form, call us on +49 4121 2621-0 or send us an email to sales@proxitron.de.

Our team will be pleased to advise and provide you with all the information you need!
