Optics for devices with light guide cable

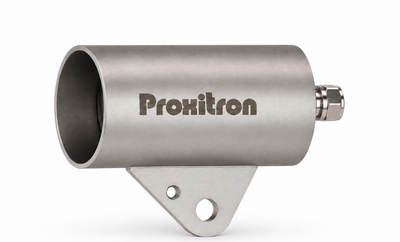

  • OAA 154, article-no. 6049B, optic large, 1,5° view angle, up to +150 °C ambient temperature
  • OAA 154 H, article-no. 6049A, optic large, 1,5° view angle, up to +290 °C ambient temperature

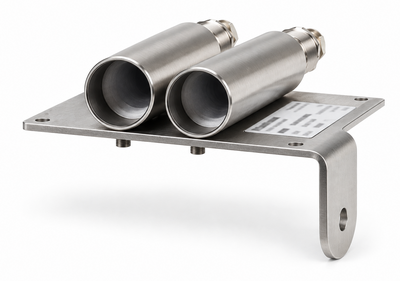

  • OADF 154, article-no. 6039A, optic large with 2x LLK-connection, 1,7° view angle, up to +290 °C ambient temperature
  • OAA 204, article-no. 6043A, optic large, 2° view angle, up to +150 °C ambient temperature
  • OAA 404, article-no. 6050A, optic large, 4° view angle, up to +150 °C ambient temperature
  • OAA 703, article-no. 6048A, optic large, 7° view angle, up to +150 °C ambient temperature
  • OAA 264, article-no. 6047A, optic large, 2°x25° view angle, up to +150 °C ambient temperature

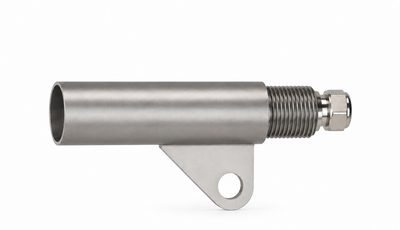

  • OACF 154, article-no. 6036O, optic small, 1,5° view angle, up to +290 °C ambient temperature
  • OACF 154 H, article-no. 6036R, optic small, 1,5° view angle, up to +290 °C ambient temperature, radiation heat at optical side +600 °C
  • OACF 204, article-no. 6036K, optic small, 2° view angle, up to +290 °C ambient temperature
  • OACF 671, article-no. 6037H, optic small, 20° view angle, up to +290 °C ambient temperature
  • OACF 704, article-no. 6036L, optic small, 7° view angle, up to +290 °C ambient temperature
  • OACF 672 H, article-no. 6037E, holder small, 20° view angle, up to +600 °C ambient temperature
  • OAF 154, article-no. 6036P, optic small with air connection, 1,5° view angle, up to +290 °C ambient temperature
  • OAF 154 H, article-no. 6036Q, optic small with air connection, 1,5° view angle, up to +600 °C ambient temperature
  • OAF 204, article-no. 6036J, optic small with air connection, 2° view angle, up to +290 °C ambient temperature
  • OAF 671, article-no. 6037F, optic small with air connection, 15° view angle, up to +600 °C ambient temperature
  • OAF 672 H, article-no. 6037F, optic small with 2 air connections, 15° view angle, up tos +600 °C ambient temperature
  • OAF 704, article-no. 6036F, optic small with air connection, 7° view angle, up to +290 °C ambient temperature
  • OATF 154, article-no. 6036F, optic for light scanners, 1,5° view angle, up to +290 °C ambient temperature
  • Further optics up to +600 °C ambient temperature available

You can find more information about the listed articles in our article search.


Dimension Optic (mm)


Viewing Angle

.

Optic

1m

2 m

3 m

4 m

5 m

OAA 154

40 mm

65 mm

100 mm

135 mm

170 mm

OAA 204

40 mm

75 mm

130 mm

185 mm

240 mm

OAA 404

70 mm

130 mm

210 mm

290 mm

370 mm

OAA 703

70 mm

170 mm

270 mm

370 mm

470 mm

OAA 264

40 x 350 mm

75 x 950 mm

130 x 1550 mm

185 x 2150 mm

240 x 2750 mm

OACF / OAF 104

20 mm

30 mm

50 mm

70 mm

90 mm

OACF / OAF 154

25 mm

45 mm

80 mm

115 mm

150 mm

OACF / OAF 204

40 mm

95 mm

150 mm

205

260

OACF / OAF 704

70 mm

170 mm

270 mm

370 mm

470 mm
