Detection and position monitoring with high sensitivity

The new Proxitron infrared loop scanner detects hot material and measures its position with high precision. The integrated, maintenance-free CCD line detects hot material even under the toughest conditions. No matter whether it is a large slab or a thin wire. The loop scanner scans a narrow measuring area contactless and detects the exact position of wire, sections or rods even through dust and steam. With the analog output it is possible to adjust speed downstream as for example in the case of loop control, centre the hot material or determine the position of hot material of any kind. Furthermore a switching signal provides  information on the presence of hot material in the scan area. Proxitron Infrared Loop Scanners involve little effort, either in terms of investment costs or service.



  • HM 10 Montagewinkel

  • Anschlusskabel

Features at a glance

  • robust housing with water cooling

  • scanning angle 43°

  • ambient temperature up to 85 °C with cooling up to 50 °C without cooling

  • object temperature from 600 °C

  • reaction time 3 ms

  • 1x switching output (NPN / PNP)

  • 1x analog output 0 - 10 V DC

  • maintenance-free

  • plug MIL 19


  • HM 10 mounting bracket

  • connection cable

Positioning through precise angle measurement

Horizontal Loop Control

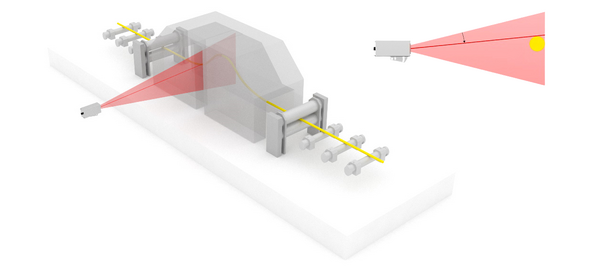

Vertical Loop Control
