Detection of hot and cold tubes at heat treatment (wet environment)


Type + Art.-No.:

LAB 600.3, 5037E
LSB 600.38 GV, 5038C
IKE 100.05 G, 2130E

Application:

non-contact detection of hot and cold objects

Industry:

Steel industry

Customer / Field / Equipment manufacturer

Production of seamless tubes.

Application description

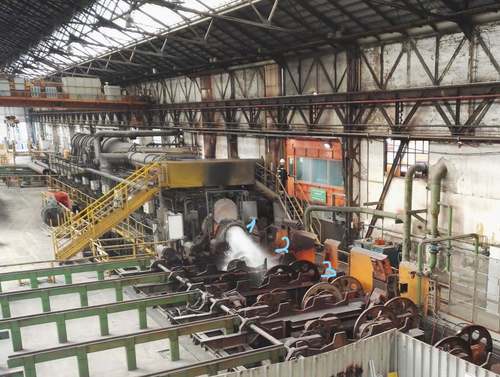

Customer needs detection at three separate places – light blue marked in picture above: 1) at furnace exit, 2) outside the furnace on the second mechanical support; 3) on the last support. Material can be hot – at furnace exit and because of annealing – as well as cold, when tubes dwell on the mechanical supports and cool down without hardening.

Customer problem

Hardening brings about a huge amount of water spraying around. On the other side, when dwelling on the mechanical supports with no hardening treatment, tubes give off high temperature which will damage any sort of sensors placed nearby.

Previous solution / Competitor product

Just a pyrometer mounted at furnace exit; operation was badly affected by the water. No solution for the subsequent detection places.

Proxitron Lösung

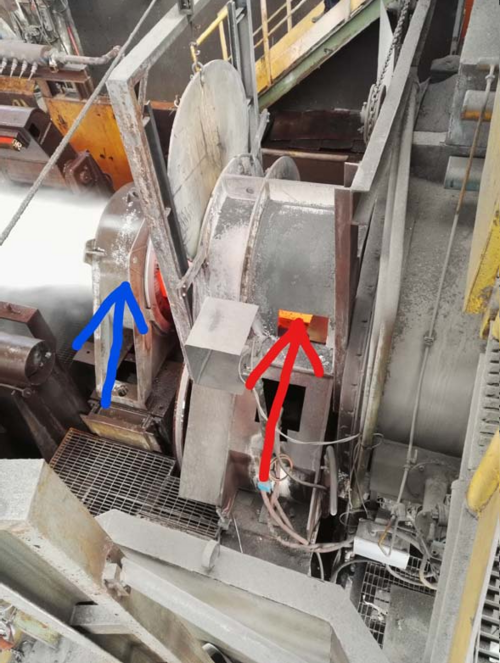

A light barrier made of transmitter and receiver was installed at furnace exit (red arrow) BEFORE the hardening head. No accessory in front of the optic. Signal was staggered so that information could be used as „presence of tube inside the “hardening head” (blue arrow). Upstream detection. In this mounting position barrier is invested by a limited amount of water which flows backwards shortly only when the subsequent tube is fed into the head.

For the second and third detection place, corresponding to the supports, customer planned inductive proximity switches IKE. They were mounted underneath, in idle position. Customer would lift and approach them to the tube only when detection is necessary, i.e. when hardening process is over. In this recessed mounting position sensors would be best protected from damages due to high temperature.

Advantages compared to previous solution or competition

Infrared light barrier in compact design features the utmost functional reserve and provides reliable operation in highly contaminated environment (water + steam).

Accessories used

Description

Swivel Stand

Type

HM 2

Art.-No.

9816B
