Infrared High Temperature Sensor Protection Tube System

Infrared High Temperature Sensor Protection Tube System

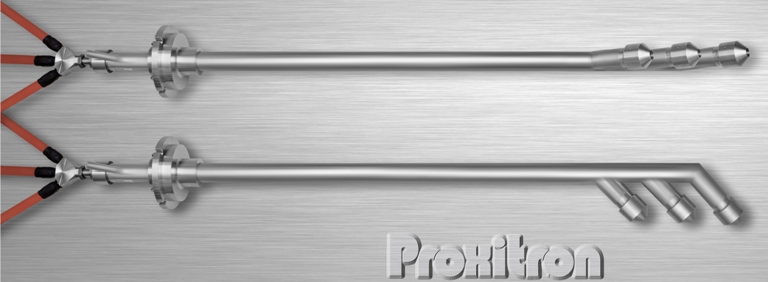

Piros Infrared High Temperature Sensor Protection Tube Systems transfer the radiation of hot objects to a seperate electronic. They can be used in applications where other sensors are overstrained because of the high radiation- or ambient temperature. The compatible mounting allows the replacement of existing AEG protection tube systems. The infrared protection tube system has a purge air connection for cooling and cleaning the optics




and enables the mounting below the conveyor track directly below the hot object that should be detected.

This leads to an extremly high detection accuracy and reproducibility. Available are systems with 1 up to 3 optics, which transfer the IR-radiation via a fibre optic cable to an evaluation electronic. This allows a redundant monitoring of the conveyor track for hot material.

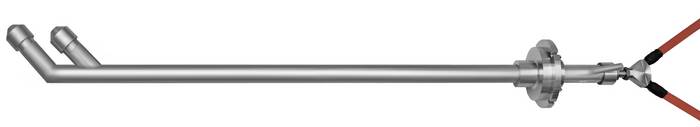

Hot Metal Detection Protection Tube System OIL 001

Three seperated optic systems detect the IR-radiation

Piros Infrared Sensor OSE 3L48.38 GVK

The evaluation electronic receives the IR-radiation via three fibre optic cables and therefore allows a redundant monitoring in the operating modes 3 of 3, 2 of 3 or 1 of 3.

Hot Metal Detection Protection Tube System OIL 004

Two seperated optic systems detect the IR-radiation

Piros Infrared Sensor OSE 2L48.38 GVK

The evaluation electronic receives the IR-radiation via two fibre optic cables and allows a single or double reduntant monitoring.

Hot Metal Detection Protection Tube System OIL 003

One optic systems detects the IR-radiation

Piros Infrared Sensor OSE 1L48.38 GVK

The evalution optic receives the infared radiation of one fibre optic cable and evaluates it.

Type Art.-no. Optic systems Evaluation sensor Art.-no. Operating modes Output
OIL 001 6437A 3 OSE 3L48.38 GVK 7540C 1 of 3, 2 of 3, 3 of 3 PNP n.o., PNP n.c.
OIL 004 6440A 2 OSE 2L48.38 GVK 7540D 1 of 2, 2 of 2 PNP n.o., PNP n.c.
OIL 003 6439A 1 OSE 1L48.38 GVK 7540D 1 of 1 PNP n.o., PNP n.c.

Ambient temperature up to +290°C without cooling

min. distance optic / material 170 mm

Response temperature >380°C

Fibre optic cable lengths from 3 m
